Introduction to our products
Stainless steel wires
Stainless steels that are corrosion-resistant, 100% recyclable and environment-friendly are used in our daily life in broad scale. We can propose the kind of Ni stainless steel and Cr stainless steel that will suit your use. We answer the needs of our clients with our motto of ghigh quality and short lead timeh.

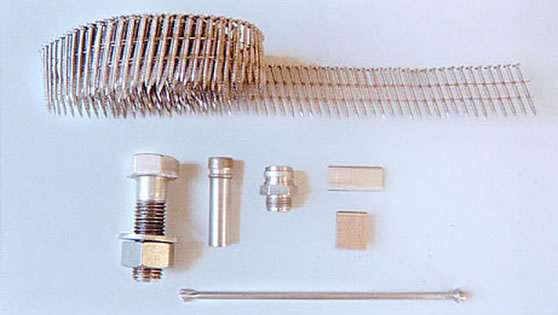

Stainless steel wires for nails, screws and bolts
 |
|
| Main steel making classes | SUS304@SUS305@SUSXM7@SUS316@SUS430@SUS410@SUS403 |
|---|---|
| Refining | We can cope with hardness according to the use. |
| Wire diameter (mm) | For nails: 0.8. For screws: 2. For bolts: 3~30. |
| Examples of use | Construction, home appliances, bridges, office equipment (Bolts, nuts, wooden screws, machine screws, nails, tapping, staples etc.) |

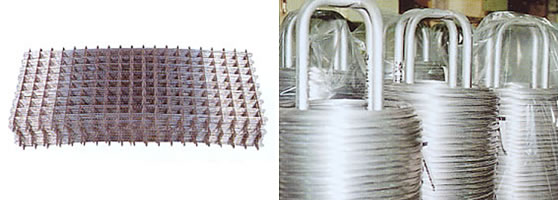

Stainless steel wires for wire net
 |
||
| Main steel making classes | SUS304@SUS309@SUS310@SUS321@SUS347@SUS310@SUS317 | SUS430 |
|---|---|---|
| Refining | Soft #1 (W1), Soft #2 (W2), 1/2 Hard (W1/2H) | Soft #2 (W2) |
| Wire diameter (mm) | 0.3`1.0 | |
| Examples of use | Conveyer, sieve, concrete reinforcement material, separator, agitator, kitchen utensils and others iCrimp, shell, plain weave, diamond shape, mesh and othersj |
|

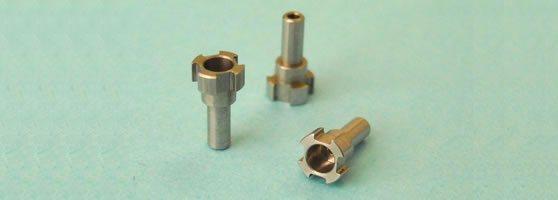

Stainless steel wires for free-cutting
 |
|
| Main steel making classes | SUS303@SUS303Cu@SUS416 |
|---|---|
| Wire diameter (mm) | 2`13 |
| Examples of use | Office equipment, measurement equipment, electrical equipment, precision part |

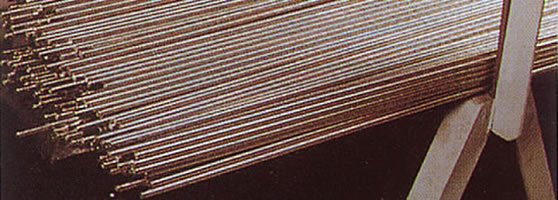

Stainless steel straight wires
 |
||
| Main steel making classes | SUS304@SUS303@SUS316@SUS310@SUS309@SUS410@SUS340@SUS416 | |
|---|---|---|
| Production machine model | Continuous drawing bench Straight cutting |
|
| Production size | Diameter (mm) | 5`13A0.8`12 |
| Length (mm) | 2`5A`6 | |

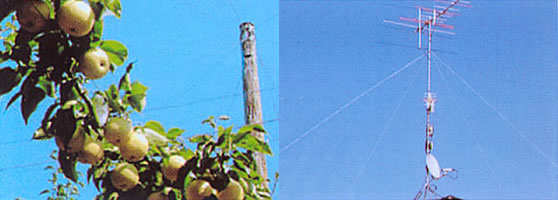

Stainless steel wires for orchard,/outdoor structure
 |
|
| Main steel making classes | SUS304@SUS316 |
|---|---|
| Refining | Soft #1 (W1), Soft #2 (W2), 1/2 Hard (W1/2H) |
| Wire diameter (mm) | 1`5 |
| Examples of use | Grape shelf, pear shelf, kiwi shelf, solar rack, antenna fixation |

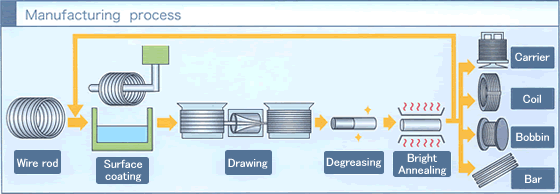

Production process
